FULLY ADHERED INSULATED

STANDING SEAM SYSTEM

SYSTEM OVERVIEW

The Fatra standing seam replicate insulated system is perfect for modern day architecture and provides unrivalled thermal performance and aesthetics for bespoke projects which creates the look of a metal roof but with the performance of Fatra PVC membrane system.

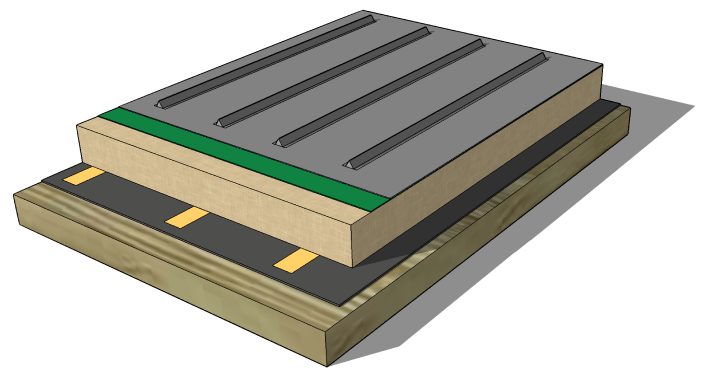

The system consists of the FatraVap self adhered vapour control layer bonded directly to the substrate to prevent any condensation ingress. The PIR insulation board is then full bonded directly to the FatraVap using the Fatrabond insulation adhesive. Once the insulation is bonded into place the Fatrafol 807v PVC membrane is then fully adhered to the tissue faced insulation board using the Fatrabond 1215 moisture curing polyurethane adhesive to create a fully adhered insulated roof system. The standing seam replicates are then hot air fusion welded to the field sheet membrane at identical centres to achieve the look of a traditional metal deck roof. The standing seam replicates come in lengths of 3m to reduce the amount of setting out required.

The Fatra standing seam replicate system is the perfect solution for almost any roof where aesthetics and performance are the number one priority. Unlike traditional metal deck roofs, the Fatra standing seam replicate system comes with an array of accessories to create a fully homogenous system that does not require onsite fabrication or is reliant on silicone seals along the joints and laps. The Fatra standing seam system is fully hot air fusion welded creating a permanent waterproofing system with a life expectancy in excess of 30 years.

STANDING SEAM REPLICATE | PVC Standing Seam Profiles

Fatra PVC standing seam replicates are hot air fusion welded to the membrane to provide the aesthetics of a metal roof but superior performance capabilities of a Fatra PVC Membrane system.

FATRAFOL 807v | Fleece Back PVC Waterproofing Sheet Membrane

The Fatrafol 807v fleece back membrane is fully adhered directly to the PIR tissue faced insulation board with the Fatrabond 1215 moisture curing polyurethane adhesive.

PIR | Insulation Board

The PIR insulation is installed over the vapour control and is fully adhered using Fatrabond 1210 moisture curing polyurethane adhesive

DOWNLOADS

GET ALL FILES IN EMAIL

WORD SPEC
Specification word template to simply insert into your project documentation.
Insert into project docs
Tailor to requirements
CAD DETAILS
DWG detailed section drawings for all associated system detailing.
Tailor to requirements
Branding capability
2D DRAWINGS
Cross section drawings for all associated system detailing.
Precise system detailing
Compact design
INSTALL GUIDE
Provides a step by step guide on how the system comes together
3d steps guide
Compact design
TECH DATA SHEETS
All the technical data & MSDS documentation.
System specific TDS
TDS for every component
MAINTENANCE
Provides full guidance on how to maintain the Fatra system.
Maximise system life span
Includes maintenance log
3D TECH SPEC
3D images with full methodology of the system.
3D installation manual
Customise to any project
CERTIFICATION
All certification, accreditations & test results for the Fatra system.
Performance transparency
System specific
