BELOW GROUND

BASEMENT SYSTEM

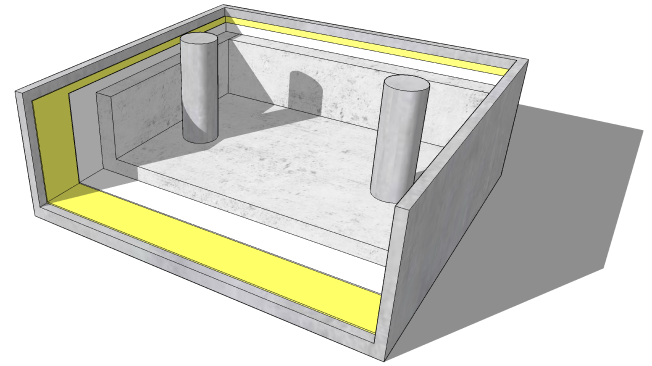

SYSTEM OVERVIEW

The Fatra basement system provides a cost effective and versatile waterproofing solution for all types of basement waterproofing.

The Fatrafol 803vs is designed to withstand aggressive water pressure, hydrostatic pressure and creates a radon barrier to prevent the natural gases that are present below ground from entering the building foundations. The Fatrafol 803vs is made with a black scrim below and a top yellow signal layer to enable contractors to easily identify any breaches in the membrane. If the yellow top layer is damaged the black scrim layer below shows through making any defects easy to spot and patch repair prior to laying a concrete slab or any other overlaying finishes.

The Fatrafol basement system is completely hot air fusion welded which doesn't rely on tapes or sealants to prevent water ingress. The membrane can be mechanically fixed or bonded using the relevant Fatrabond contact adhesive and can be installed over almost any substrate, pile walls and lift pits with minimal preparation and does not require any priming to enable the system to operate efficiently.

FATRAFOL 803vs | Yellow/Black PVC Waterproofing Sheet Membrane

The Fatrafol 803vs is a yellow face/black scrim PVC sheet membrane which is resistant to aggressive water pressure and gasses which occur naturally below ground. The Fatrafol 803vs is fully hot air fusion welded along all joints, laps and terminations meaning it is not reliant on adhesives, sealants or tapes to provide its waterproofing integrity.

CONCRETE TOPPING SLAB | Overlaying Finishes

Once the Fatrafol PVC Membrane is fully installed and signed off, installation of Fatra Armour protection mat is applied over the top of the Fatrafol membrane to provide protection to the waterproofing system prior to installing the concrete topping slab.

DOWNLOADS

GET ALL FILES IN EMAIL

WORD SPEC
Specification word template to simply insert into your project documentation.
Insert into project docs
Tailor to requirements
CAD DETAILS
DWG detailed section drawings for all associated system detailing.
Tailor to requirements
Branding capability
2D DRAWINGS
Cross section drawings for all associated system detailing.
Precise system detailing
Compact design
INSTALL GUIDE
Provides a step by step guide on how the system comes together
3d steps guide
Compact design
TECH DATA SHEETS
All the technical data & MSDS documentation.
System specific TDS
TDS for every component
MAINTENANCE
Provides full guidance on how to maintain the Fatra system.
Maximise system life span
Includes maintenance log
3D TECH SPEC
3D images with full methodology of the system.
3D installation manual
Customise to any project
CERTIFICATION
All certification, accreditations & test results for the Fatra system.
Performance transparency
System specific
